[Bundle] ChargeBridge Evaluation Kit - EVSE + CAR side
[Bundle] ChargeBridge Evaluation Kit - EVSE + CAR side
The prices shown are net prices.
Shipping calculated at checkout.
Couldn't load pickup availability
- Versatile: Supports development for both AC and DC fast charging (CCS) scenarios with full DIN SPEC 70121/ISO15118-2/-20 support
- Ethernet or USB connection to Linux host
- Interfaces: Full access to CAN (for power supplies), RS485 (for insulation monitors/meters), UART, 3x relay drivers, temperature measurements, emergency I/O and GPIOs.
- Lab Ready: Perfect for desk setups, HIL test benches, as a reference design for custom carrier boards or for your fully fledged PoC Charger
- Compatibility: Designed for the ChargeBridge Module (M.2) and seamless EVerest integration.
- DC Capability: Enables testing of DC charging sequences up to 1000V when connected to external HV component.
- 12V-24V supply voltage

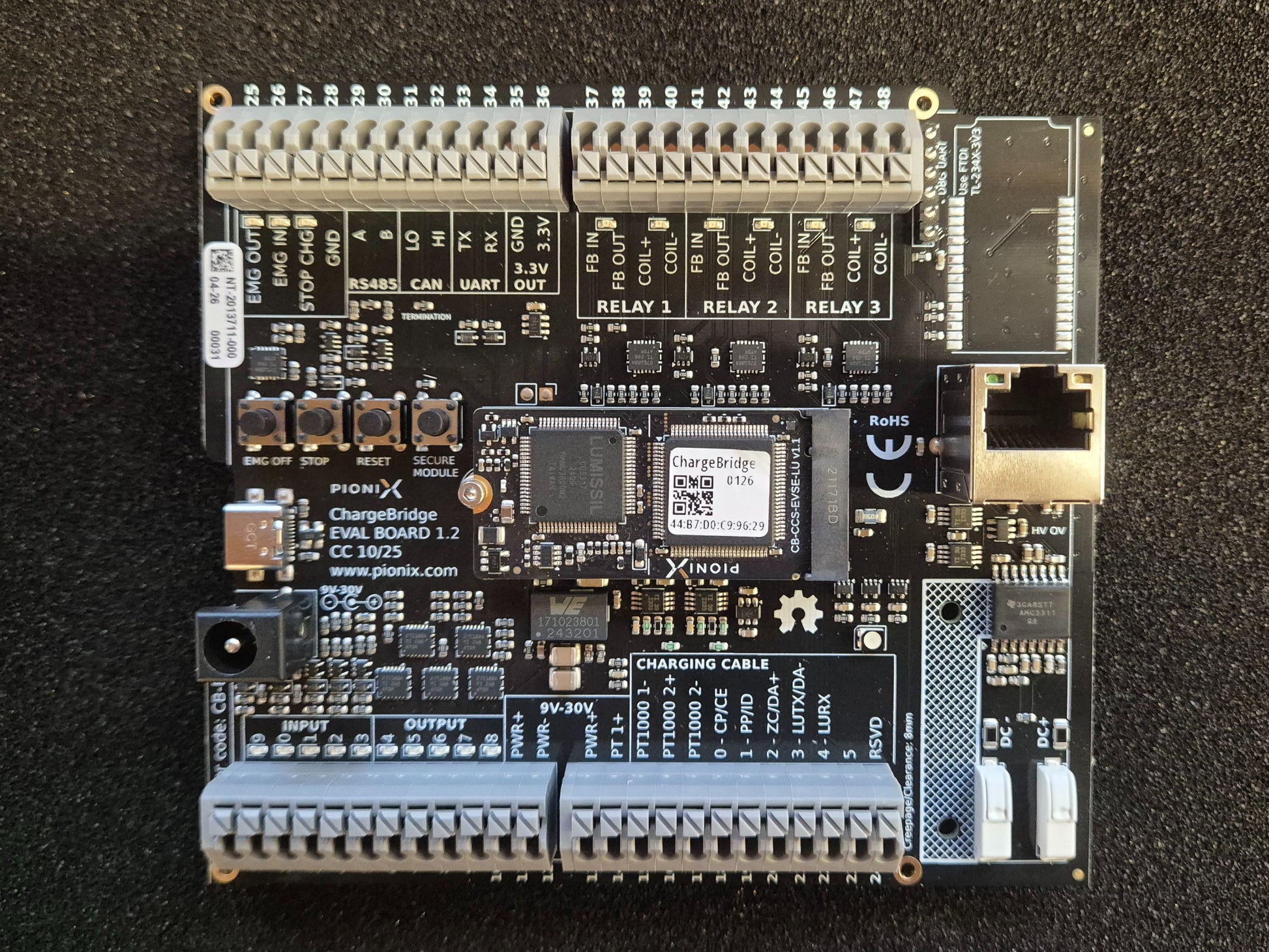

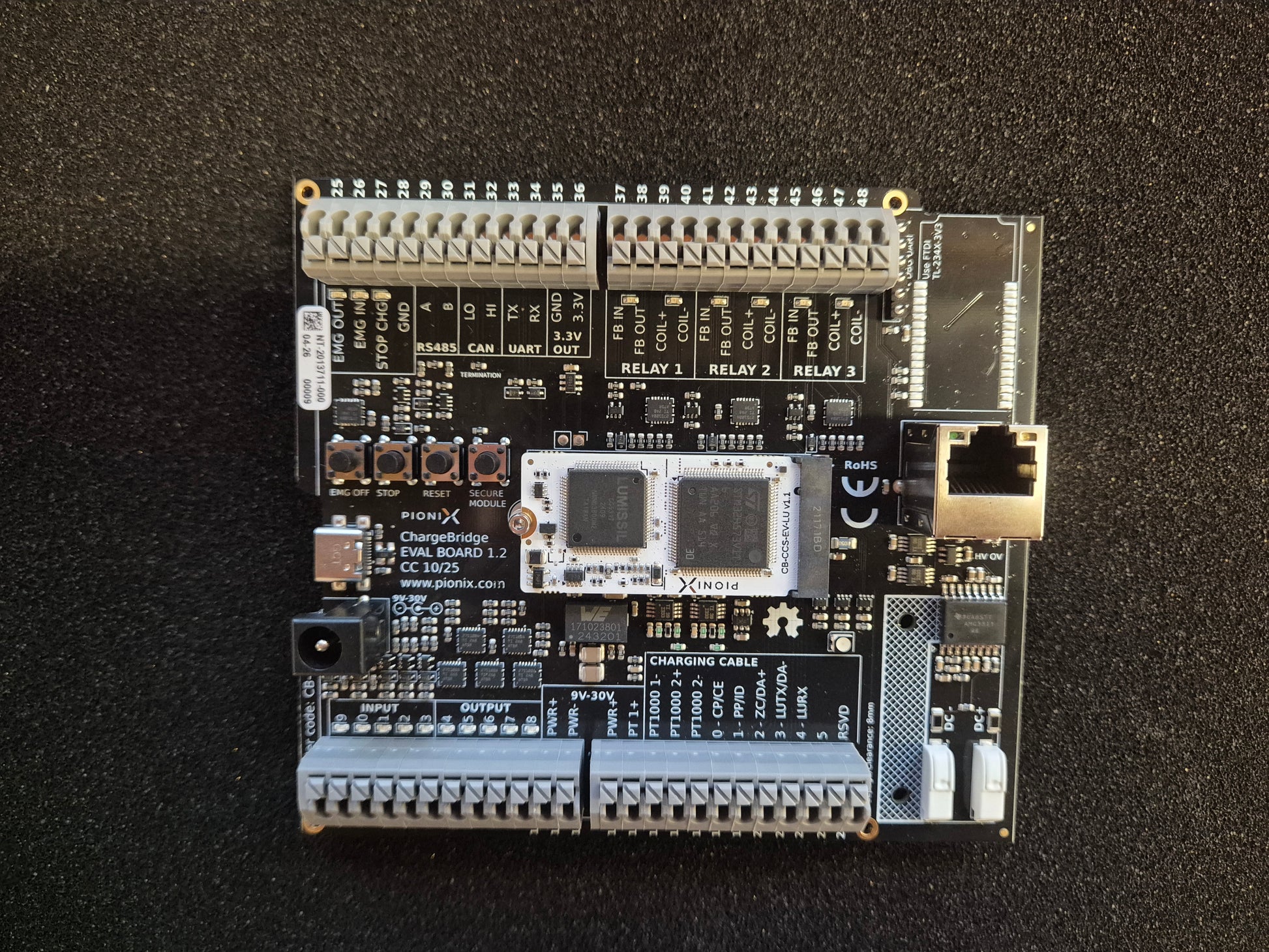

ChargeBridge EV Evaluation Kit – Universal Breakout Board for AC & DC car side
An EV to ease your charging station development or HIL Testing setup. This kit includes a ChargeBridge module for the EV side, the breakout board is the same as for the EVSE side.
Use in combination with the EVSE side breakout board to build a desk top setup with both sides and two EVerest instances and watch the ISO charging session between them. Or plug it in into any charger, run EVerest EV side on a Linux computer and plug/unplug the EV remotely to build your own HIL testing setup that can also tunnel local busses such as your debug uart console.
This breakout board makes all ChargeBridge module interfaces accessible via convenient connectors, serving as a flexible foundation for both AC and DC application.
Key Features:
- Versatile: Supports development for both AC and DC fast charging (CCS) scenarios with full DIN SPEC 70121/ISO15118-2/-20 support (EV side)
- Ethernet or USB connection to Linux host
- Interfaces: Full access to CAN (for power supplies), RS485 (for insulation monitors/meters), UART, 3x relay drivers, temperature measurements, emergency I/O and GPIOs.
- Lab Ready: Perfect for desk setups or HIL test benches
- Compatibility: Designed for the ChargeBridge Module (M.2) and seamless EVerest integration.
- 12V-24V supply voltage
Documentation: https://link.pionix.com/chargebridge-demo-docs
Open Hardware KiCad project files: https://github.com/PionixPublic/cb-eval-board
What you get:
- 2 x EVAL Charging Carrier Board
- ChargeBridge CB-CCS-EVSE-LU Module
- ChargeBridge CB-CCS-EV-LU Module
- 2 x 24V Power supply
Shipping Cost
Shipping Cost
Germany
| Shipping Fee Germany Small | 0kg–5kg | 40,00 € EUR |
| Shipping Fee Germany Large | 5.1 kg und mehr |
60,00 € EUR |
Europa
Österreich, Belgien, Bulgarien, Kroatien, Zypern, Tschechien, Dänemark, Estland, Finnland, Frankreich, Griechenland, Ungarn, Irland, Italien, Lettland, Litauen, Luxemburg, Malta, Niederlande, Polen, Portugal, Rumänien, Slowakei, Slowenien, Spanien, Schweden, Vereinigtes Königreich:
| Shipping Fee EU Small | 0kg–5kg | 150,00 € EUR |
| Shipping Fee Rest of World Small | 5.1 kg und mehr | 200,00 € EUR |
Rest of World
| Shipping Fee Rest of World Small | 0kg–5kg | 200,00 € EUR |
| Shipping Fee Rest of World Large | 5.1 kg und mehr | 280,00 € EUR |

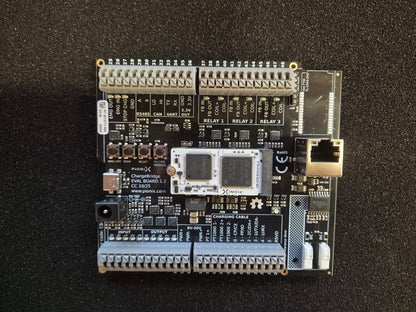

![[Bundle] ChargeBridge Evaluation Kit - EVSE + CAR side](http://shop.pionix.com/cdn/shop/files/20260202_105544.jpg?v=1770029925&width=1445)
