ChargeBridge EV Evaluation Kit – car side [PN: CB-EVAL-CCS-EV-LU-KIT]

ChargeBridge EV Evaluation Kit – car side [PN: CB-EVAL-CCS-EV-LU-KIT]

€950,00 EUR
€950,00 EUR
Sale Sold out

The prices shown are net prices.

Shipping calculated at checkout.

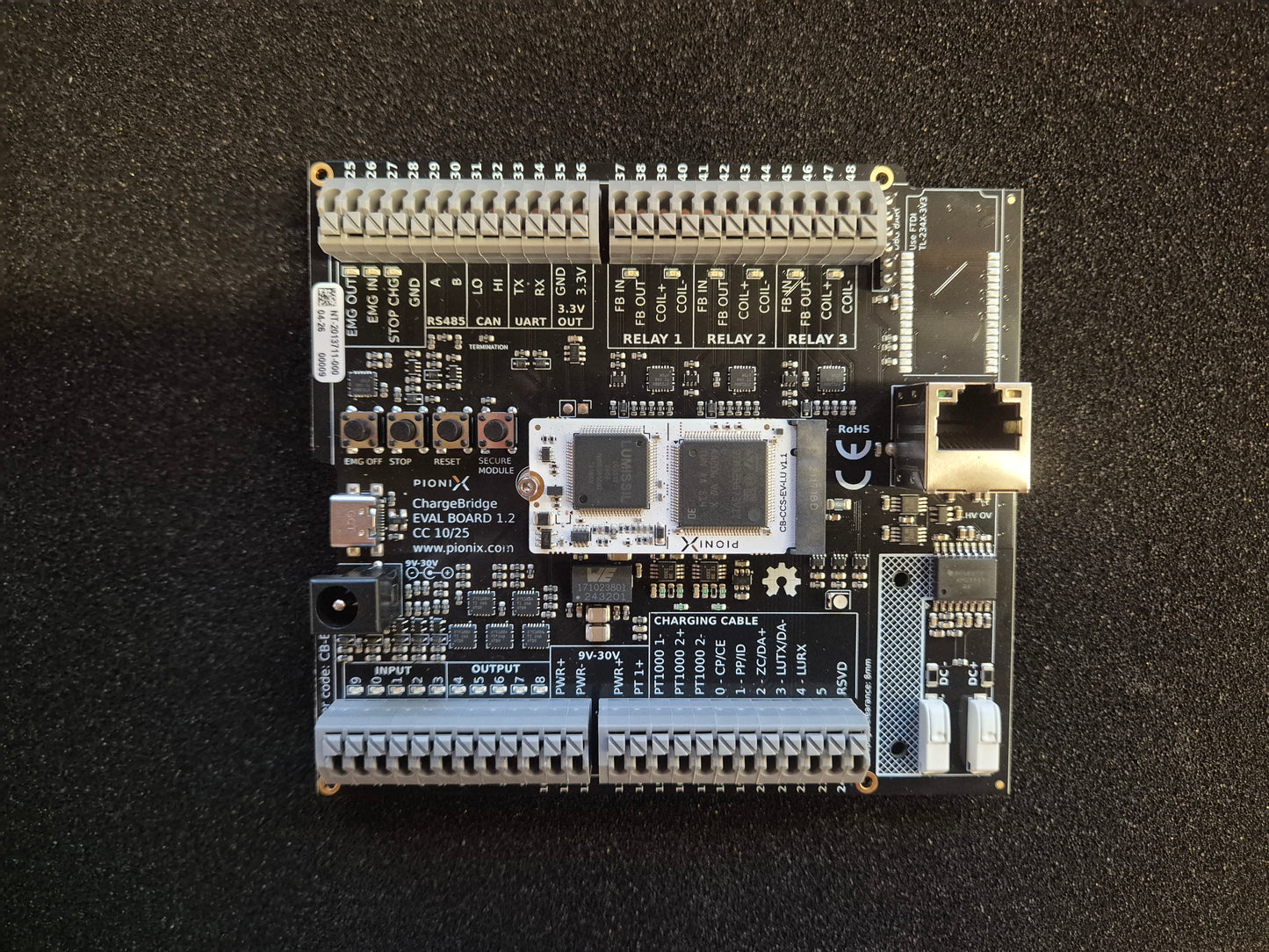

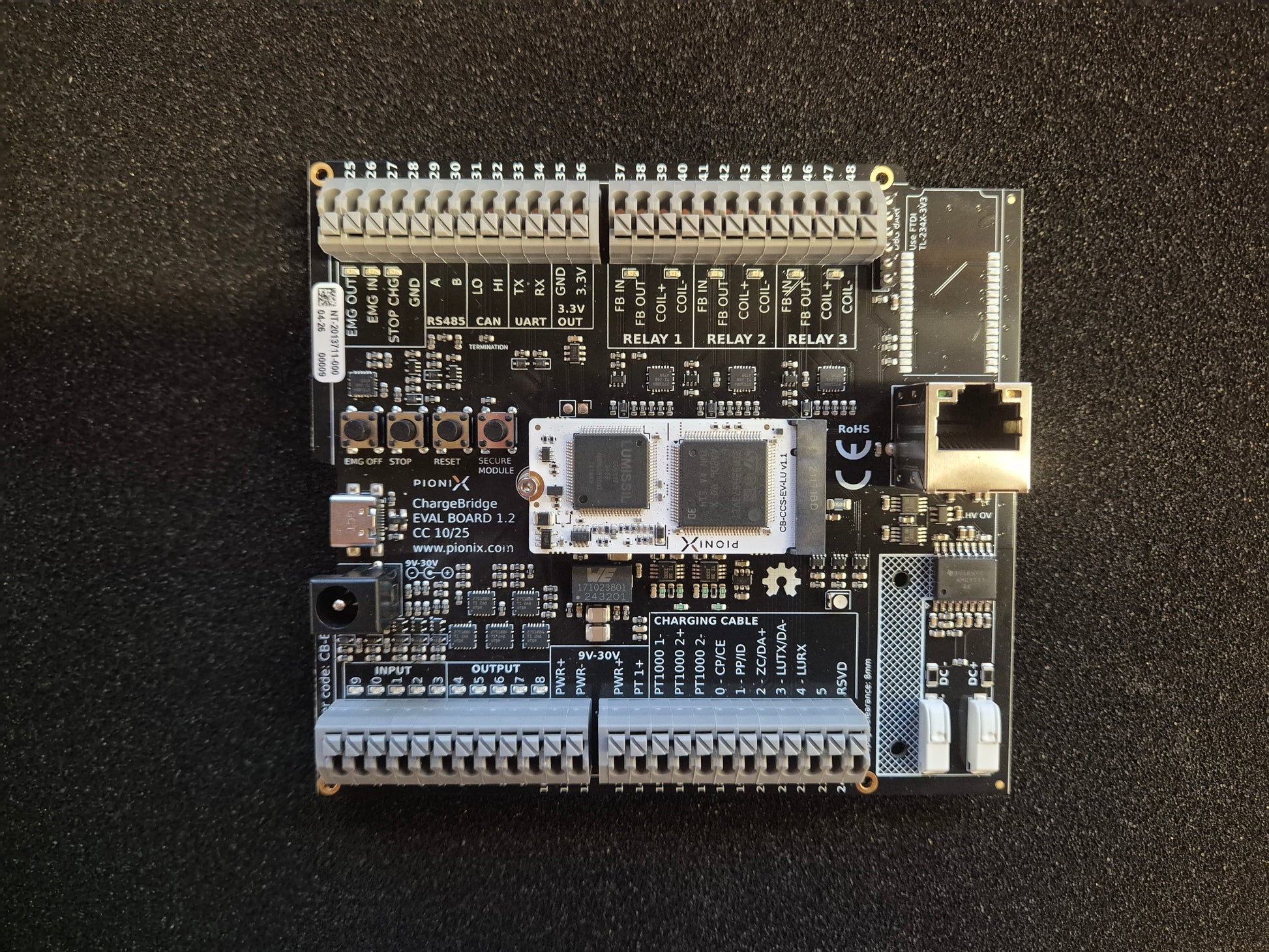

ChargeBridge EV Evaluation Kit – Universal Breakout Board for AC & DC car side

An EV to ease your charging station development or HIL Testing setup. This kit includes a ChargeBridge module for the EV side, the breakout board is the same as for the EVSE side.

Use in combination with the EVSE side breakout board to build a desk top setup with both sides and two EVerest instances and watch the ISO charging session between them. Or plug it in into any charger, run EVerest EV side on a Linux computer and plug/unplug the EV remotely to build your own HIL testing setup that can also tunnel local busses such as your debug uart console.

This breakout board makes all ChargeBridge module interfaces accessible via convenient connectors, serving as a flexible foundation for both AC and DC application.

Key Features:

  • Versatile: Supports development for both AC and DC fast charging (CCS) scenarios with full DIN SPEC 70121/ISO15118-2/-20 support (EV side)
  • Ethernet or USB connection to Linux host
  • Interfaces: Full access to CAN (for power supplies), RS485 (for insulation monitors/meters), UART, 3x relay drivers, temperature measurements, emergency I/O and GPIOs.
  • Lab Ready: Perfect for desk setups or HIL test benches
  • Compatibility: Designed for the ChargeBridge Module (M.2) and seamless EVerest integration.
  • 12V-24V supply voltage

Documentation: https://link.pionix.com/chargebridge-demo-docs

Open Hardware KiCad project files: https://github.com/PionixPublic/cb-eval-board



What you get:

  • EVAL Charging Carrier Board
  • ChargeBridge CB-CCS-EV-LU Module
  • 24V Power supply
