ChargeBridge AC Charger Kit [PN: CB-EVAL-AC-CCS-EVSE-LU-KIT]
ChargeBridge AC Charger Kit [PN: CB-EVAL-AC-CCS-EVSE-LU-KIT]
Regular price
€1.499,00 EUR
Regular price
Sale price
€1.499,00 EUR
Unit price
/
per
The prices shown are net prices.
Shipping calculated at checkout.
Couldn't load pickup availability

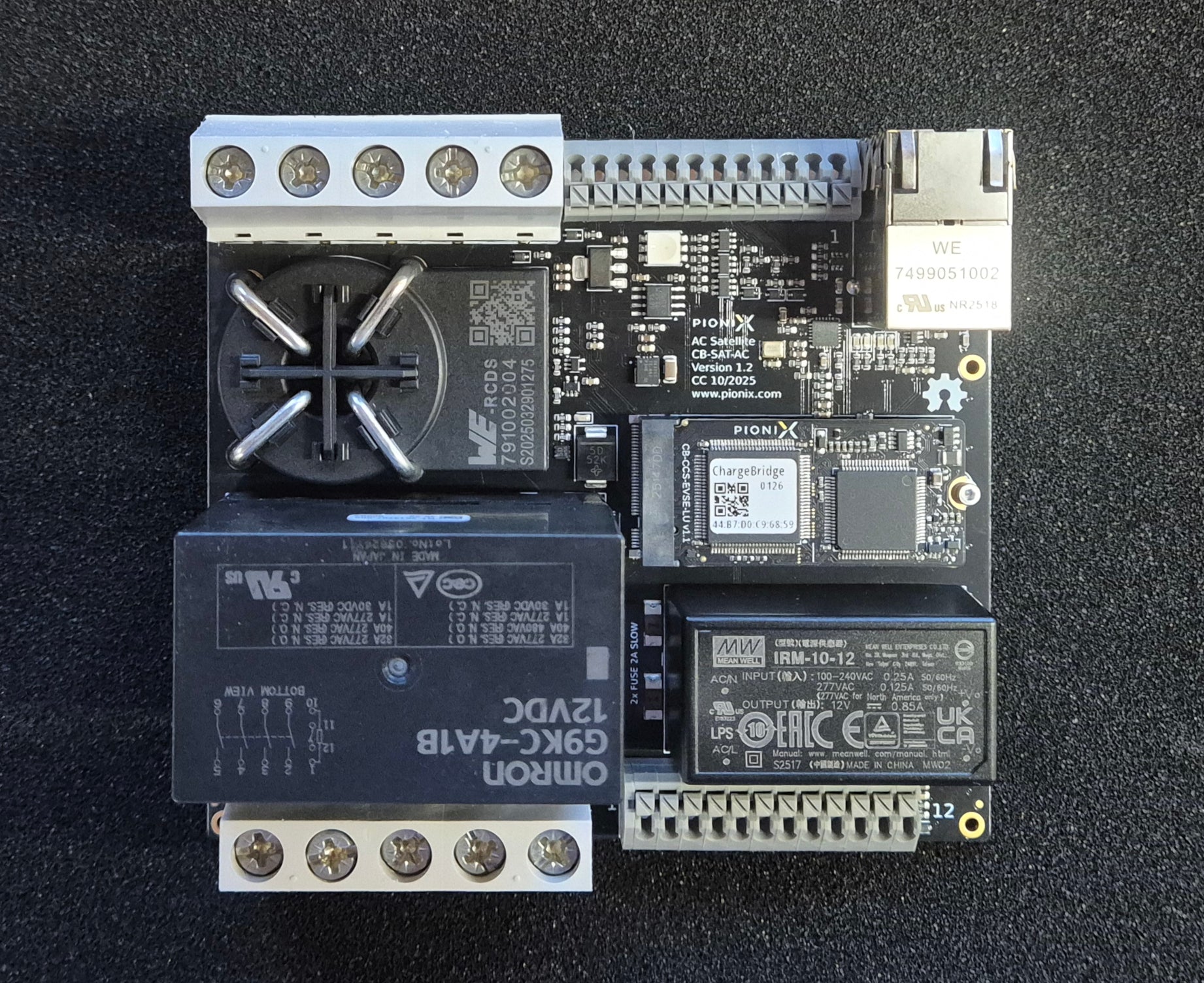

ChargeBridge AC Evaluation Board – Development Kit for AC Charging
Accelerate your AC charging station development. The ChargeBridge AC Evaluation Board is a fully populated evaluation board designed for Evaluation of ChargeBridge and EVerest for Classic AC Chargers as well as "Satellite Architectures." It allows you to control a charging point via an external compute unit (e.g., Linux Host with EVerest), making it ideal for prototyping and testing.
Key Features:
Integrated Control: Includes relays control, CP/PP interfaces, and support for ISO 15118-2/Plug & Charge (when used with EVerest).
Accelerate your AC charging station development. The ChargeBridge AC Evaluation Board is a fully populated evaluation board designed for Evaluation of ChargeBridge and EVerest for Classic AC Chargers as well as "Satellite Architectures." It allows you to control a charging point via an external compute unit (e.g., Linux Host with EVerest), making it ideal for prototyping and testing.
Key Features:
- Application: Development of single-phase or three-phase AC charging systems (up to 400V).
- Architecture: Reference Board to start to develop you next generation AC Charger.
- Connectivity: Seamless connection to the host via Ethernet or USB.
-
Compatibility: Designed for the ChargeBridge Module (M.2) and seamless EVerest integration.
Integrated Control: Includes relays control, CP/PP interfaces, and support for ISO 15118-2/Plug & Charge (when used with EVerest).
Documentation: https://link.pionix.com/chargebridge-demo-docs
Open Hardware KiCad project files: https://github.com/PionixPublic/cb-sat-ac
What you get:
- AC Charging Carrier Board
- ChargeBridge Module
